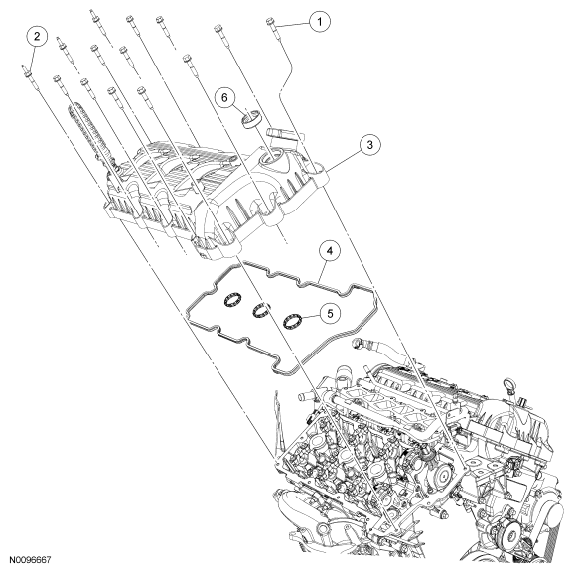

RH Valve Cover (View 2 of 2)
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION TABLE
| Item |
Part Number |
Description |
| 1 |
6C519 |
Valve cover stud bolt (11 required) |
| 2 |
6C519 |
Valve cover bolt (3 required) |
| 3 |
6582 |
Valve cover |
| 4 |
6584 |
Valve cover gasket |
| 5 |
6C527 |
Valve cover spark plug gasket (3 required) |
| 6 |
6C535 |
Variable Camshaft Timing (VCT) valve cover seal |
