LH Valve Cover (View 1 of 2)

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

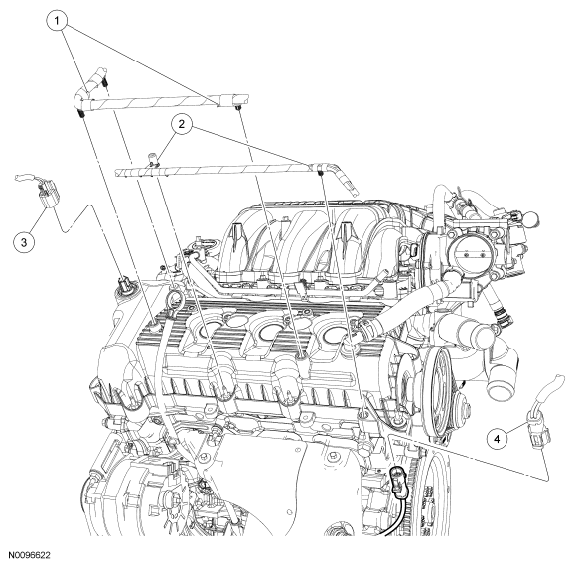

Fig 1: Identifying LH Valve Cover Components (1 Of 2)
G06263317Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 - Valve cover wiring retainers (part of 12A581)
2 - B+ cable valve cover stud bolt wiring retainers (part of 14A280)
3 14A464 Variable Camshaft Timing (VCT) electrical connector (part of 12A581)
4 14A464 LH Heated Oxygen Sensor (HO2S) electrical connector (part of 12A581)
