Cylinder Head
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

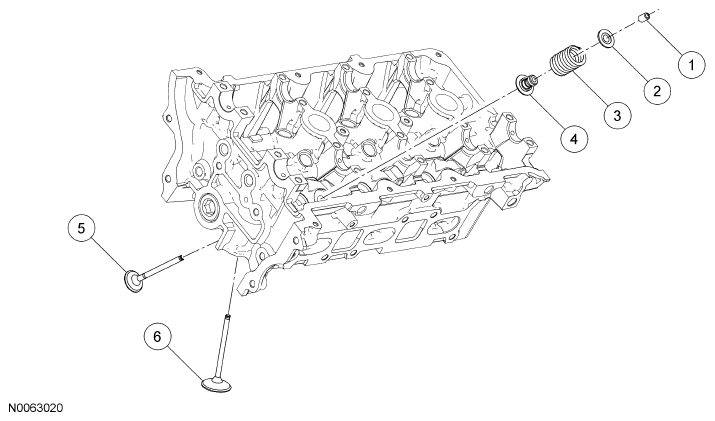

Courtesy of FORD MOTOR CO. ITEM DESCRIPTION TABLE
| Item |
Part Number |
Description |
| 1 |
6518 |
Valve spring retainer key (24 required) |
| 2 |
6514 |
Valve spring retainer (12 required) |
| 3 |
6513 |
Valve spring (12 required) |
| 4 |
6A517 |
Valve stem seal (12 required) |
| 5 |
6505 |
Intake valve (6 required) |
| 6 |
6507 |
Exhaust valve (6 required) |
