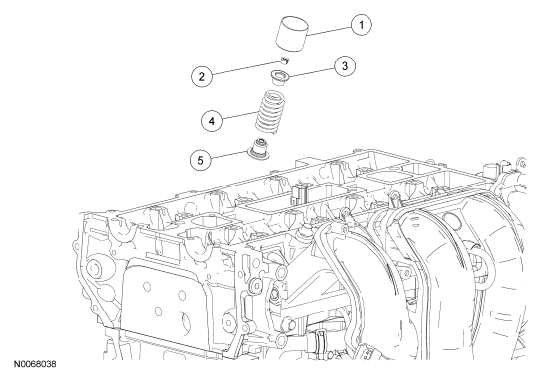

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO. ITEM DESCRIPTION TABLE
| Item |
Part Number |
Description |
| 1 |
6500 |
Valve tappet (16 required) |
| 2 |
6518 |
Valve collet (16 required) |
| 3 |
6514 |
Valve spring retainer (16 required) |
| 4 |
6513 |
Valve spring (16 required) |
| 5 |
6517 |
Valve seal (16 required) |
- For additional information, refer to the appropriate procedure(s).
