Intake Manifold (View 2 of 2)

WARNING: This page is about a different car, the 2010 Mercury Milan and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

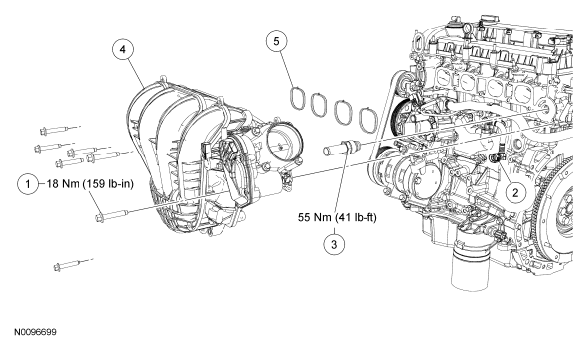

Fig 1: Intake Manifold (2 Of 2) With Torque Specifications
G06261768Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 W500311 Intake manifold bolt (7 required)
2 6A785 Crankcase vent oil separator tube (part of 6A785)
3 9E470 EGR tube
4 9424 Intake manifold
5 9461 Intake manifold gasket
