170-Pin PCM

WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2010 Mercury Milan, 2010 Mercury Mariner, 2010 Mercury Grand Marquis, 2010 Lincoln Town Car, and 2010 Lincoln Navigator L. However, it is still accessible from the selected car via links, so may be relevant.

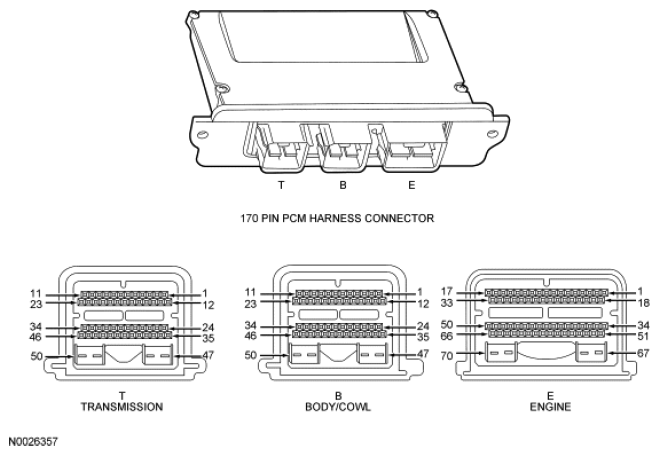

Fig 1: 170-Pin PCM

Courtesy of FORD MOTOR CO.

170-PIN PCM POWER AND GROUNDS REFERENCE TABLE

Function	Description	Connector/Pin
VPWR	Voltage input to module	B35, B36
PWRGND	Power ground	B47, B48, B49, B50
CSEGND	Case ground	B10
SIGRTN	Signal return	B41, E58, T41
VREF	5 volt reference	B40, E57
KAPWR	Keep alive power	B45
