Fuel Pump (FP) Module
WARNING: This page does not describe the selected car, but rather 32 other vehicles, including the 2010 Mercury Milan, 2010 Mercury Mariner, 2010 Mercury Grand Marquis, 2010 Lincoln Town Car, and 2010 Lincoln Navigator L. However, it is still accessible from the selected car via links, so may be relevant.

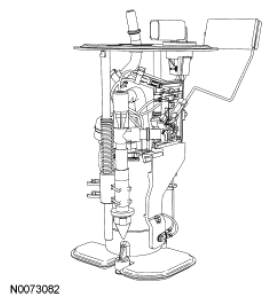

The FP module contains the fuel pump and sender assembly. The fuel pump is located inside the FP module reservoir and supplies fuel through the FP module manifold to the engine and FP module jet pump. The jet pump continuously refills the reservoir with fuel, and a check valve located in the manifold outlet maintains system pressure when the fuel pump is not energized. A flapper valve located in the bottom of the reservoir allows fuel to enter the reservoir and prime the fuel pump during the initial fill.
