Pinpoint Test KD: Electric Exhaust Gas Recirculation (EEGR) System: Introduction

WARNING: This page is about a different car, the 2010 Mercury Mariner and 2010 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: TO PREVENT THE RISK OF HIGH-VOLTAGE SHOCK, ALWAYS FOLLOW PRECISELY ALL WARNINGS AND SERVICE INSTRUCTIONS, INCLUDING INSTRUCTIONS TO DEPOWER THE SYSTEM. THE HIGH-VOLTAGE HYBRID SYSTEM UTILIZES APPROXIMATELY 300 VOLTS DC, PROVIDED THROUGH HIGH-VOLTAGE CABLES TO ITS COMPONENTS AND MODULES. THE HIGH-VOLTAGE CABLES AND WIRING ARE IDENTIFIED BY ORANGE HARNESS TAPE OR ORANGE WIRE COVERING. ALL HIGH-VOLTAGE COMPONENTS ARE MARKED WITH HIGH-VOLTAGE WARNING LABELS WITH A HIGH-VOLTAGE SYMBOL. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN SERIOUS PERSONAL INJURY OR DEATH.

This pinpoint test is intended to diagnose the following:

EEGR system
EEGR stepper motor (9D475)
harness circuits: EGRMC1, EGRMC2, EGRMC3, EGRMC4 and VPWR
powertrain control module (PCM) (12A650)

Fig 1: Electric Exhaust Gas Recirculation (EEGR) Assembly Connector

Courtesy of FORD MOTOR CO.

Fig 2: Manifold Absolute Pressure (MAP) Sensor Connector

Courtesy of FORD MOTOR CO.

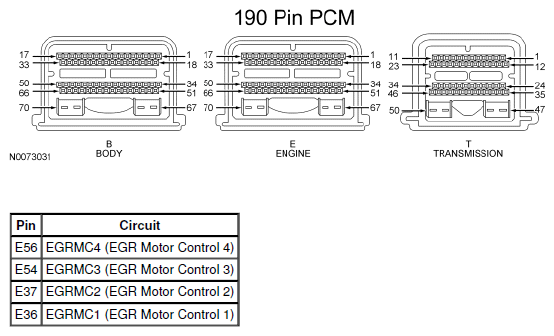

Fig 3: Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.
