Parking Aid Sensor: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
NOTE:

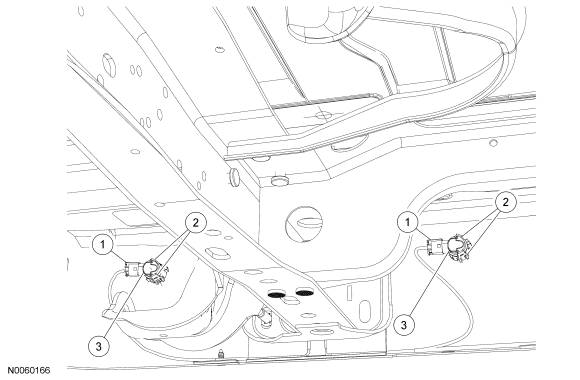

Standard bumper shown, step bumper similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Parking aid sensor electrical connector (part of 14N139) |
| 2 | - | Parking aid sensor retaining tabs |
| 3 | 15K859 | Parking aid sensor (4 required) |
