Power Steering Pump to Steering Gear Pressure Line: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

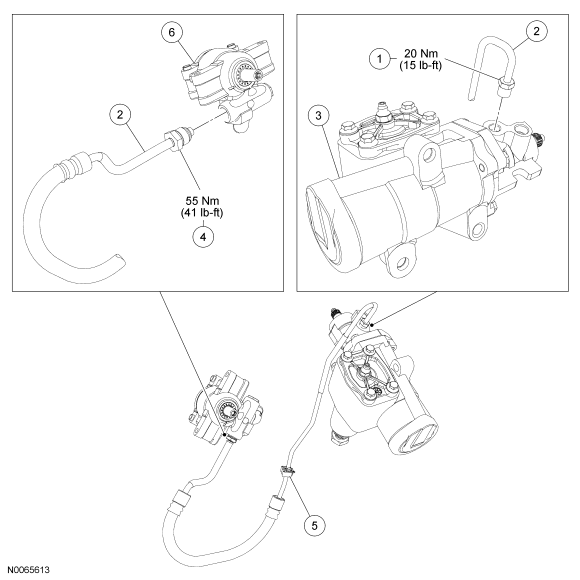

Fig 1: Exploded View Of Power Steering Pump to Steering Gear Pressure Line With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-steering gear fitting (part of 3A719) |
| 2 | 3A719 | Pressure line |
| 3 | 3504 | Steering gear |
| 4 | - | Pressure line-to-pump fitting (part of 3A719) |
| 5 | - | Pressure line clip |
| 6 | 3A696 | Power steering pump |
