Power Steering Pump to Hydraulic Booster Pressure Line: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

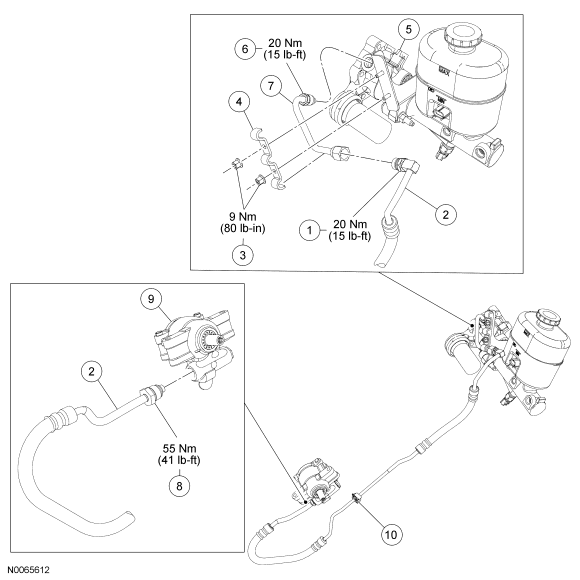

Fig 1: Exploded View Of Power Steering Pump to Hydraulic Booster Pressure Line With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Pressure line-to-hydraulic booster jumper line fitting (part of 3A717) |
| 2 | 3A717 | Pressure line |
| 3 | N620480 | Hydraulic booster jumper line bracket nuts (2 required) |
| 4 | 2A051 | Hydraulic booster jumper line bracket |
| 5 | 3N919 | Hydraulic booster |
| 6 | - | Hydraulic booster jumper line-to-booster fitting (part of 3N999) |
| 7 | 3N999 | Hydraulic booster jumper line |
| 8 | - | Pressure line-to-pump fitting (part of 3A717) |
| 9 | 3A674 | Power steering pump |
| 10 | - | Pressure line clip |
