Power Steering Fluid Reservoir: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
NOTE:

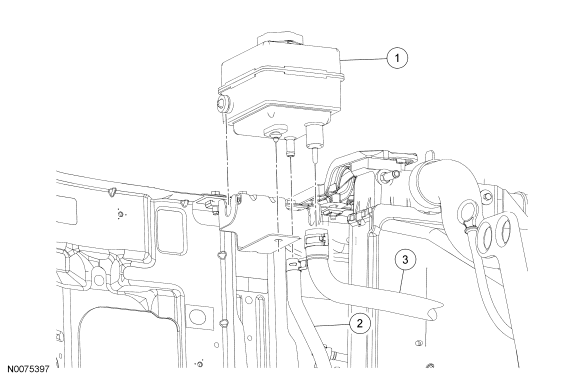

Gas engine shown, diesel engine similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 3A697 | Power steering fluid reservoir |
| 2 | 3691 | Power steering cooler-to-reservoir return hose |
| 3 | 3A713 | Power steering pump supply hose |
