Driveshaft - Rear Two-Piece: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

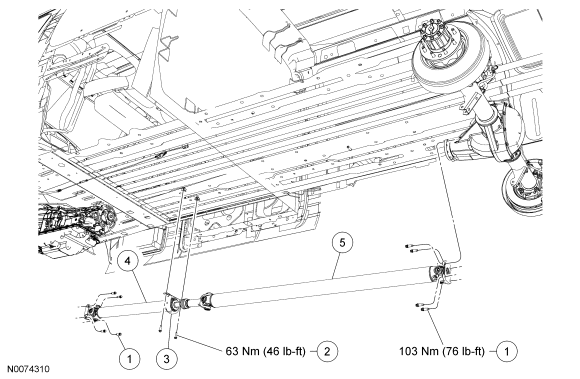

| Item | Part Number | Description |
|---|---|---|
| 1 | N811880-S | U-joint flange-to-flange bolts (8 required) |
| 2 | 56761-S | Center bearing mounting bolt (2 required) |
| 3 | 211359X | Center bearing assembly |
| 4 | 4C24 | Coupling shaft |
| 5 | 4K145 | Driveshaft tube |
