Driveshaft Universal Joint - Single Cardan, Slip Yoke: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer/Remover, C-Frame and Screw | 205-086 (T74P-4635-C) |

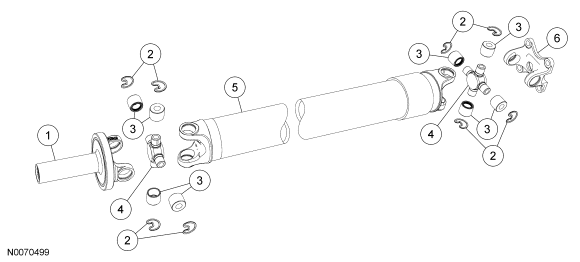

| Item | Part Number | Description |
|---|---|---|
| 1 | 4841 | Driveshaft slip yoke |
| 2 | - | Snap rings (4 required) (part of 4635) |
| 3 | - | Bearing cups (part of 4635) |
| 4 | - | Spiders (part of 4635) |
| 5 | 4602 | Driveshaft |
| 6 | 4782 | Driveshaft centering socket flange |
