Differential Case and Ring Gear - Conventional: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Puller, Drive Pinion/Differential Carrier | 205-D036 (D81L-4220-A) or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |
| Motorcraft SAE 80W-90 Premium Rear Axle Lubricant XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

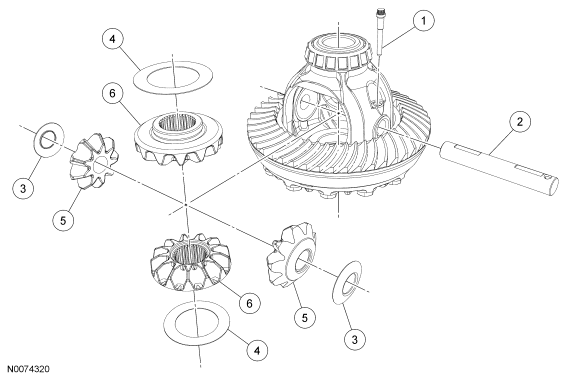

| Item | Part Number | Description |
|---|---|---|
| 1 | 4241 | Differential pinion shaft lock screw |
| 2 | 4211 | Differential pinion shaft |
| 3 | 4230 | Differential pinion gear thrust washers |
| 4 | 4215 | Differential side gear thrust washers |
| 5 | 4215 | Differential pinion gears |
| 6 | 4236 | Differential side gears |
