Throttle Position (TP) Sensor - 6.8L: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

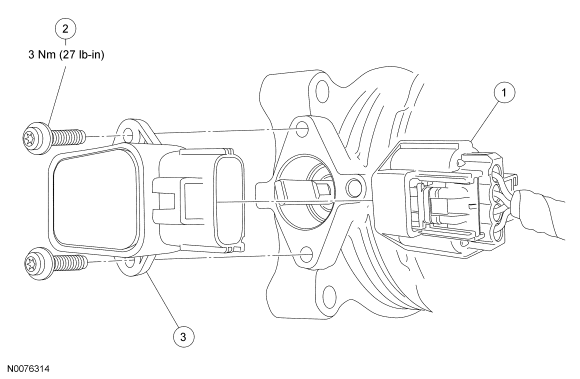

Fig 1: Exploded View Of Throttle Position (TP) Sensor With Torque Specification - 6.8L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Throttle position (TP) sensor electrical connector (part of 12B637)
2	W707535	TP sensor screw (2 required)
3	9E928	TP sensor
