Fuel Rail Pressure and Temperature Sensor - 4.6L, 5.4L: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |

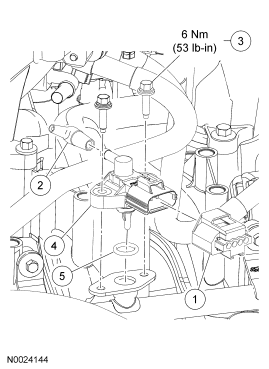

Fig 1: Exploded View Of Fuel Rail Pressure and Temperature Sensor - 4.6L, 5.4L With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel rail pressure and temperature sensor electrical connector (part of 12B637) |
| 2 | 9E498 | Fuel rail pressure and temperature sensor vacuum connector |
| 3 | N808874 | Fuel rail pressure and temperature sensor bolt (2 required) |
| 4 | 9G756 | Fuel rail pressure and temperature sensor |
| 5 | - | Fuel rail pressure and temperature sensor O-ring seal (part of 9G756) |
