Cylinder Head Temperature (CHT) Sensor: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Material

Item	Specification
High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada)	ESE-M12A4-A

NOTE: 5.4L shown, 4.6L and 6.8L similar.

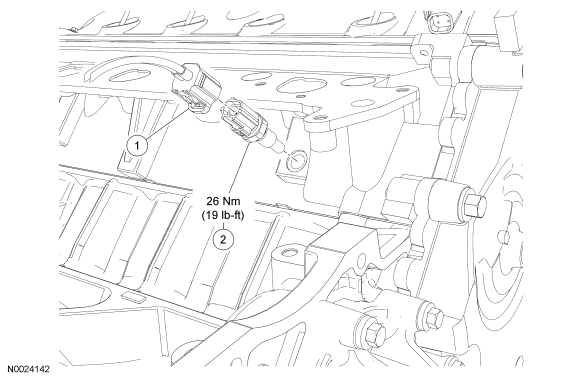

Fig 1: Exploded View Of Cylinder Head Temperature CHT Sensor With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cylinder head temperature (CHT) sensor electrical connector (part of 14B102)
2	6G004	CHT sensor
