Transmission Connector Layouts

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

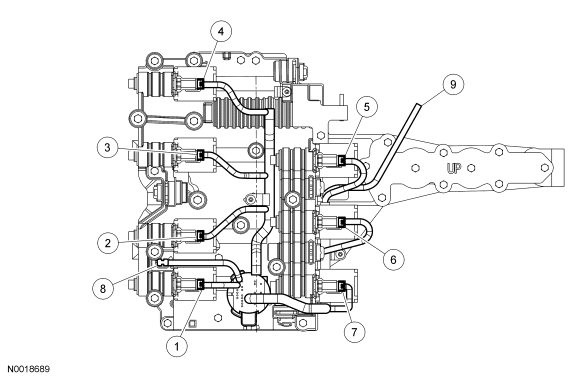

Fig 1: Internal Transmission Harness Connector/Component Locator

Courtesy of FORD MOTOR CO.

Item	Description
1	Pressure Control Solenoid A (PCA) (line pressure control)
2	Torque Converter Clutch (TCC)
3	Shift Solenoid Pressure Control B (SSPCB) (Overdrive (O/D) clutch)
4	Shift Solenoid Pressure Control A (SSPCA) (coast clutch)
5	Shift Solenoid Pressure Control E (SSPCE) (low/reverse clutch)
6	Shift Solenoid Pressure Control D (SSPCD) (direct clutch)
7	Shift Solenoid Pressure Control C (SSPCC) (intermediate clutch)
8	Transmission Fluid Temperature (TFT)
9	Transmission Range (TR) Sensor

Fig 2: Transmission Vehicle Harness Connector - C1385

Courtesy of FORD MOTOR CO.

Vehicle Connector	Description	Diesel PCM	Gas PCM
1	SSPCE	13	12
2	Not Used	-	-
3	SSPCB	10	2
4	SSPCD	12	11
5	SSPCC	11	10
6	Not Used	-	-
7	Solenoid VPWR	7	49
8	TCC	14	13
9	Not Used	-	-
10	PCA	2	23
11	Not Used	-	-
12	SSPCA	9	1
13	Not Used	-	-
14	Not Used	-	-
15	TR Signal	25	19
16	Not Used	-	-
17	TR Signal Return	22	50
18	TFT Signal	26	29
19	Not Used	-	-
20	Solenoid VPWR	7	49
21	VPWR for TR Sensor	1	39
22	SGNRTN	30	41
23	Not Used	-	-
24	Solenoid VPWR	7	49

Fig 3: Transmission Internal Harness Connector

Courtesy of FORD MOTOR CO.

Transmission Connector	Description	Diesel PCM Connector	Gas PCM Connector	Int. Wire Color Pin No. 1	Int. Wire Color Pin No. 2	Int. Wire Color Pin No. 3
1	SSPCE	13	12	Light Green	Gray	-
2	Not Used	-	-	-	-	-
3	SSPCB	10	2	Red	Light green	-
4	SSPCD	12	11	Brown	Pink	-
5	SSPCC	11	10	Yellow	Purple	-
6	Not Used	-	-	-	-	-
7	Solenoid VPWR^a	7	49	-	-	-
8	TCC	14	13	Dark Blue	Orange	-
9	Not Used	-	-	-	-	-
10	PCA	2	23	Light Blue	White	-
11	Not Used	-	-	-	-	-
12	SSPCA	9	1	Purple	Yellow	-
13	Not Used	-	-	-	-	-
14	Not Used	-	-	-	-	-
15	TR Signal	25	19	-	Light Blue	-
16	Not Used	-	-	-	-	-
17	TR Return	22	50	-	-	Tan
18	TFT Signal	26	29	Tan	Gray	-
19	Not Used	-	-	-	-	-
20	Solenoid VPWR^a	7	49	-	-	-
21	VPWR for TR Sensor	1	39	Orange	-	-
22	SGNRTN^a	30	41	-	-	-
23	Not Used	-	-	-	-	-
24	VPWR^a	7	49	-	-	-

^a See negative pins for SSPC.

Fig 4: Internal Harness TR Sensor Connector - Tan (3 Pin)

Courtesy of FORD MOTOR CO.

Pin Number	Circuit Function
1	Power
2	Sensor Signal
3	Ground

Fig 5: Internal Harness SSPC-x Solenoid Connector - Tan (2 Pin)

Courtesy of FORD MOTOR CO.

Pin Number	Circuit Function
1	Common
2	Solenoid Signal

Fig 6: OSS Sensor Harness Connector - C1107

Courtesy of FORD MOTOR CO.

Pin Number	Diesel PCM Pin	Gas PCM Pin	Circuit Function
1	1	39	Voltage Reference
2	28	3	OSS Signal
3	22	41	Signal Return

Fig 7: TSS and Intermediate Shaft Speed Sensor Harness Connector - C1387

Courtesy of FORD MOTOR CO.

Pin Number	Diesel PCM Pin	Gas PCM Pin	Circuit Function
1	1	39	Vehicle Power
2	22	41	Signal Return
3	29	15	TSS Signal
4	27	4	Intermediate Shaft Speed Signal

Fig 8: PCM

Courtesy of FORD MOTOR CO.

Connector Pin Number	Description	Diesel PCM Pin Number	Gas PCM Pin Number
1	SSPCE	13	12
2	Not Used	-	-
3	SSPCB	10	2
4	SSPCD	12	11
5	SSPCC	11	10
6	Not Used	-	-
7	Solenoid VPWR	7	49
8	TCC	14	13
9	Not Used	-	-
10	PCA	2	23
11	Not Used	-	-
12	SSPCA	9	1
13	Not Used	-	-
14	Not Used	-	-
15	TR Signal	25	19
16	Not Used	-	-
17	TR Ground	22	50
18	TFT Signal	26	29
19	Not Used	-	-
20	Solenoid VPWR	7	49
21	VPWR for TR Sensor	1	39
22	SGNRTN	30	41
23	Not Used	-	-
24	Solenoid VPWR	7	49
