Clutch and Clutch Field Coil: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Holding Fixture, Compressor Clutch | 412-134 | |
| Remover, Compressor Pulley | 412-001 (T71P-19703-B) | |
| Installer, A/C Compressor Coil | 412-065 (T89P-19623-EH) | |
| Installer, A/C Compressor Field Coil | 412-078 (T91L-19623-CH) | |
| Remover, A/C Compressor Field Coil | 412-067 (T89P-19623-FH) |

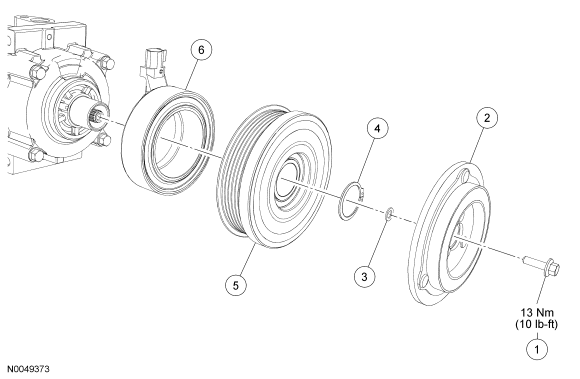

| Item | Part Number | Description |
|---|---|---|
| 1 | W711877 | A/C clutch disc and hub bolt |
| 2 | 19D786 | A/C clutch disc and hub |
| 3 | 19D648 | A/C clutch disc and hub spacer |
| 4 | N805338 | A/C compressor pulley snap ring |
| 5 | 19D784 | A/C compressor pulley |
| 6 | 19D798 | A/C clutch field coil |
