Air Conditioning (A/C) Compressor - 4.6L, 5.4L, and 6.8L: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R134a Systems) YN-12-D |
WSH-M1C231-B |

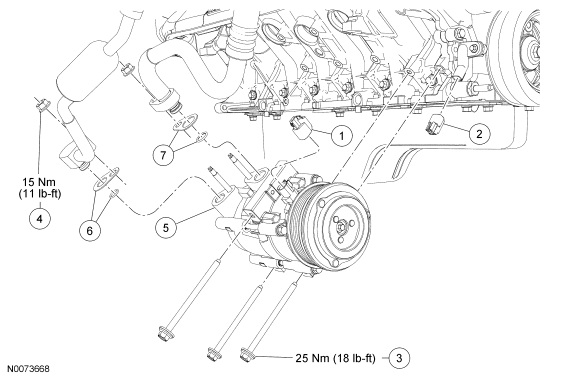

Fig 1: Exploded View Of Air Conditioning (A/C) Compressor With Torque Specifications - 4.6L, 5.4L & 6.8L
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch field coil electrical connector (part of 12A581) |
| 2 | - | Crankshaft position sensor (part of 12A581) |
| 3 | W710159 | A/C compressor bolt (3 required) |
| 4 | W520413 | A/C compressor fitting nut |
| 5 | 19703 | A/C compressor |
| 6 | 19B596 | O-ring seal and gasket seal kit |
| 7 | 19B596 | O-ring seal and gasket seal kit |
