Removal And Installation: Turbocharger: Notes
WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
ESE-M12A4-A |
| Motorcraft SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

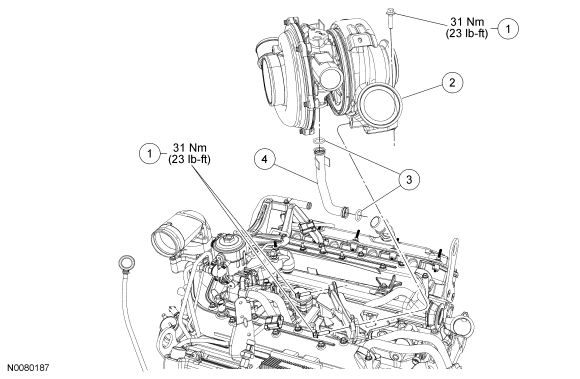

| Item | Part Number | Description |
|---|---|---|
| 1 | W302074 | Turbocharger mounting bolts |
| 2 | 6K682 | Turbocharger assembly |
| 3 | W300012 | O-ring seals |
| 4 | 9T515 | Turbocharger oil drain tube |
