Turbocharger Reconditioning: Material
WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 | ESE-M12A4-A |
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) | - |
| Motorcraft® Carburetor Tune-Up Cleaner (aerosol) PM-2 | - |
| Motorcraft® SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

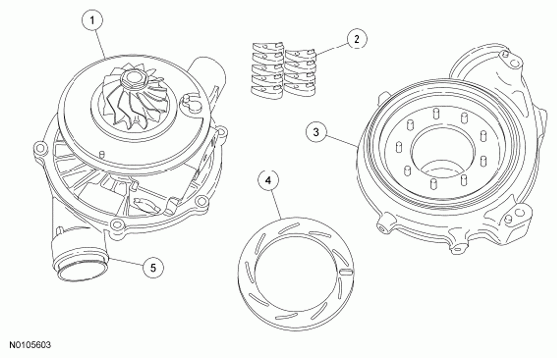

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 9G489 | Center Housing Rotating Assembly (CHRA) |
| 2 | - | Turbocharger vanes (part of 6K682) |
| 3 | - | Turbine housing (part of 6K682) |
| 4 | 6C885 | Unison ring |
| 5 | - | Compressor housing (part of 6K682) |
