Fuel Injection Control Pressure (ICP) Sensor: Notes

WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

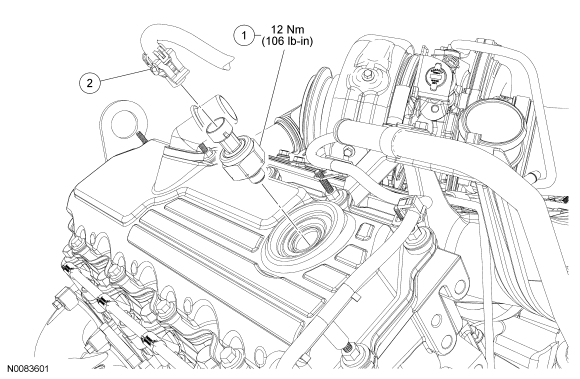

Fig 1: Exploded View Of Fuel Injection Control Pressure (ICP) Sensor With Torque Specification
GF0044600Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Fuel Injection Control Pressure (ICP) electrical connector (part of 12B637)
2 9F838 ICP sensor
