Valve Cover - RH: Notes
WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 303-D043 | 303-D043-01 or equivalent | |
| Heavy Duty Floor Crane | 014-00071 or equivalent |

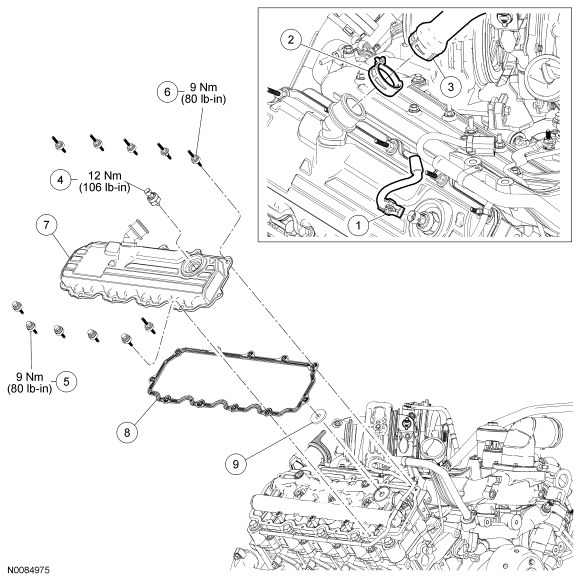

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel Injection Control Pressure (ICP) sensor electrical connector (part of 12B637) |
| 2 | - | Oil fill tube clamp |
| 3 | - | Oil fill tube |
| 4 | - | ICP sensor |
| 5 | W300034 | RH valve cover bolt (5 required) |
| 6 | W300035 | RH valve cover stud bolt (6 required) |
| 7 | 6582 | RH valve cover |
| 8 | 6584 | RH valve cover gasket |
| 9 | - | ICP sensor gasket |
