Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
ESE-M12A4-A |

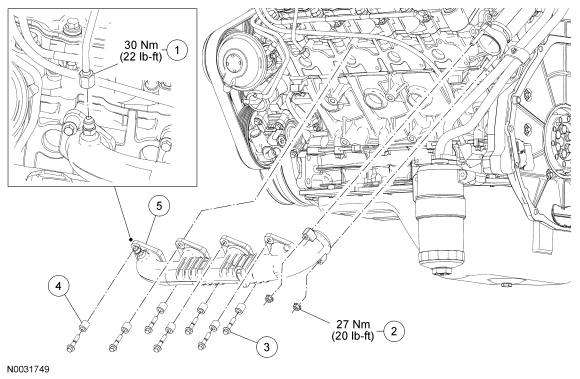

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Exhaust Pressure (EP) tube-to-exhaust manifold coupling |
| 2 | - | Exhaust manifold flange nut (2 required) |
| 3 | W300013 | Exhaust manifold bolt (8 required) |
| 4 | 9A461 | Exhaust manifold-to-cylinder head spacer (8 required) |
| 5 | 9431 | Exhaust manifold |
