Engine Rear Cover: Notes

WARNING: This page is about a different car, the 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
RTV Silicone Sealant
TA-31
-

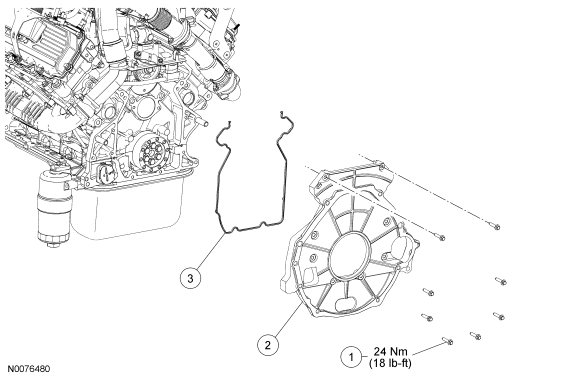

Fig 1: Exploded View Of Engine Rear Cover With Torque Specifications
GF0011851Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Engine rear cover bolt (8 required)
2 6L080 Engine rear cover
3 6D083 Engine rear cover gasket
