Extension Housing Seal: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Transmission Extension Housing Fluid Seal | 308-002 (T61L-7657-A) | |
| Slide Hammer | 100-001 (T50T-100-A) | |
| Remover, Transmission Fluid Seal | 307-048 (T74P-77248-A) |

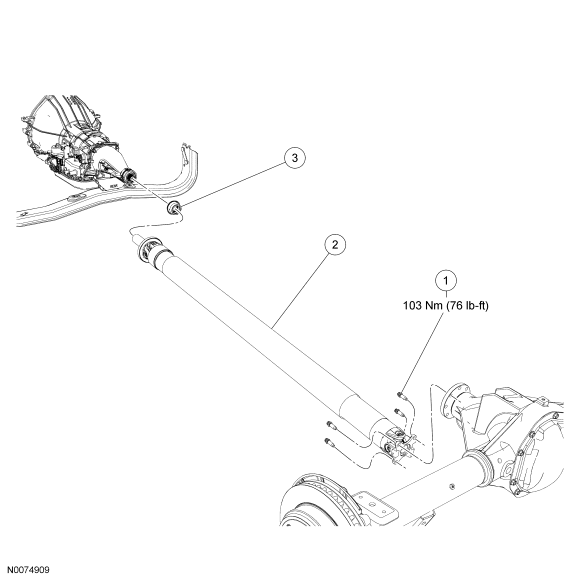

| Item | Part Number | Description |
|---|---|---|
| 1 | N811880-S | Driveshaft flange bolt (4 required) |
| 2 | 4602 | Driveshaft |
| 3 | 7052 | Extension housing seal |
