Exhaust Manifold - RH: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Material

Item Specification
Motorcraft Metal Surface Prep
ZC-31		 -

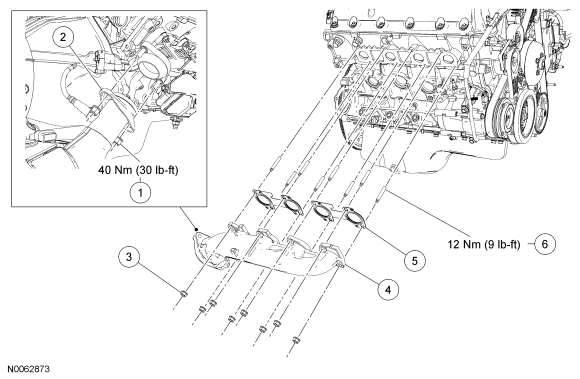

Fig 1: Exploded View Of Right Exhaust Manifold With Torque Specifications
GF0011655Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705443 Exhaust Y-pipe flange nut (2 required)
2 5F250 Exhaust Y-pipe flange
3 W701706 Exhaust manifold nut (8 required)
4 9430 Exhaust manifold
5 9Y431 Exhaust manifold gasket
6 W707747 Exhaust manifold-to-cylinder head stud (8 required)
