Crankshaft Front Seal: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Crankshaft Front Oil Seal | 303-335 (T88T-6701-A) | |
| Installer, Crankshaft Front Oil Seal | 303-635 | |
| Installer, Crankshaft Vibration Damper | 303-102 (T74P-6316-B) | |
| Remover, Crankshaft Front Oil Seal | 303-107 (T74P-6700-A) | |
| Remover, Crankshaft Vibration Damper | 303-009 (T58P-6316-D) | |
| Strap Wrench | 303-D055 (D85L-6000-A) or equivalent |
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

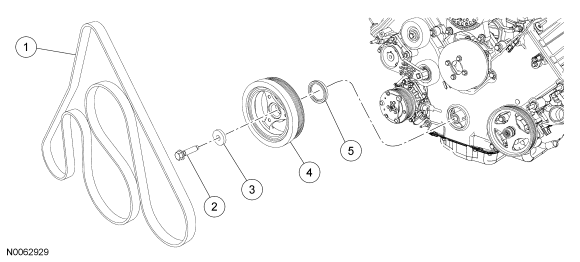

| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | W701512 | Crankshaft pulley bolt |
| 3 | N806165 | Washer |
| 4 | 6316 | Crankshaft pulley |
| 5 | 6700 | Crankshaft front seal |
