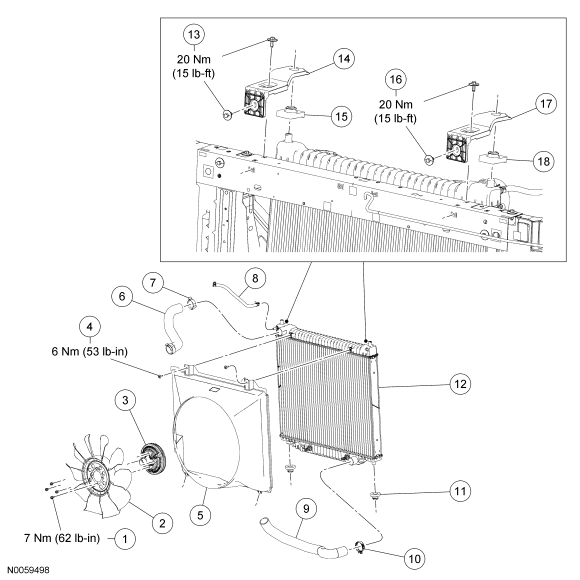

Radiator and Cooling Fan - Exploded View, Gasoline Engines
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N602527 | Cooling fan-to-cooling fan clutch bolt (4 required) |
| 2 | 8A528 | Cooling fan |
| 3 | N808794 | Cooling fan clutch |
| 4 | N807658 | Cooling fan shroud bolt (2 required) |
| 5 | 8146 | Cooling fan shroud |
| 6 | 8B274 | Upper radiator hose |
| 7 | 15161 | Upper radiator hose clamp |
| 8 | 8W005 | Degas bottle coolant hose |
| 9 | 8B273 | Lower radiator hose |
| 10 | 15161 | Lower radiator hose clamp |
| 11 | 8B204 | Lower radiator insulator (2 required) |
| 12 | 8005 | Radiator |
| 13 | N606689 | RH radiator support bracket bolts (2 required) |
| 14 | 8B359 | RH radiator support bracket |
| 15 | 8B204 | RH upper radiator insulator |
| 16 | N606689 | LH radiator support bracket bolts (2 required) |
| 17 | 8B359 | LH radiator support bracket |
| 18 | 8B204 | LH upper radiator insulator |
- For additional information, refer to the procedures.
