Radiator and Cooling Fan - Exploded View, Diesel Engines
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

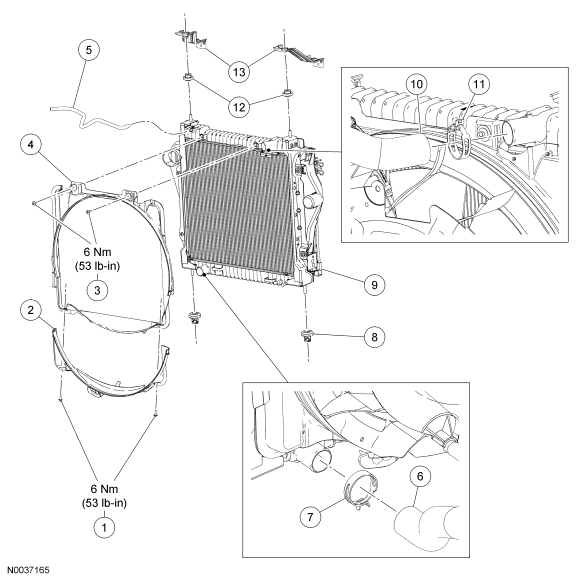

| Item |
Part Number |
Description |
| 1 |
N807658 |
Lower cooling fan shroud bolts (2 required) |
| 2 |
8147 |
Lower cooling fan shroud |
| 3 |
N807658 |
Upper cooling fan shroud bolts (2 required) |
| 4 |
8146 |
Upper cooling fan shroud |
| 5 |
8W005 |
Degas bottle coolant hose |
| 6 |
8B273 |
Lower radiator hose |
| 7 |
15161 |
Lower radiator hose clamp |
| 8 |
8B204 |
Lower radiator insulator (2 required) |
| 9 |
8005 |
Radiator assembly |
| 10 |
8B273 |
Upper radiator hose |
| 11 |
15161 |
Upper radiator hose clamp |
| 12 |
8B204 |
Upper radiator insulators (2 required) |
| 13 |
8B359 |
Radiator support brackets (2 required) |
Courtesy of FORD MOTOR CO.

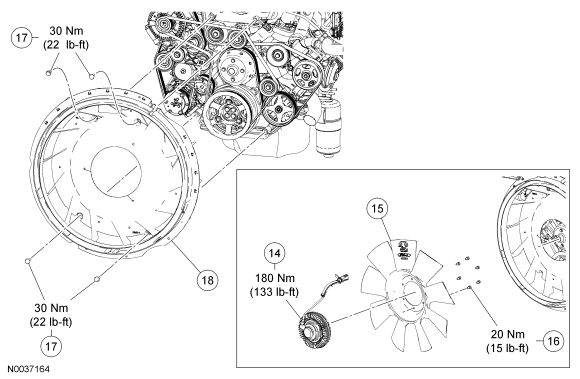

| Item |
Part Number |
Description |
| 14 |
N808794 |
Cooling fan clutch |
| 15 |
8A528 |
Cooling fan |
| 16 |
57632 |
Cooling fan-to-cooling fan clutch bolt (6 required) |
| 17 |
N807658 |
Cooling fan stator bolts (4 required) |
| 18 |
8146 |
Cooling fan stator |
- For additional information, refer to the procedures.
