Front End Accessory Drive (FEAD) - Exploded View, 4.6L, 5.4L and 6.8L
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
4.6L with A/C shown, 5.4L and 6.8L similar.

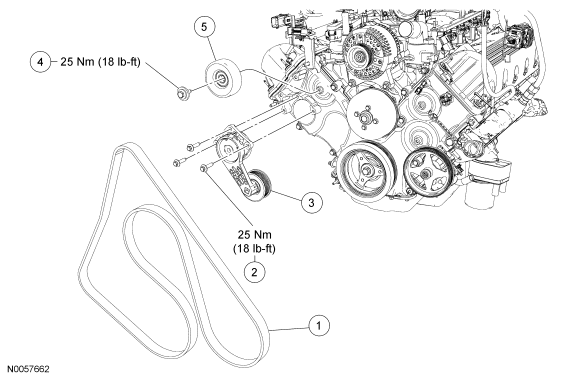

Fig 1: Exploded View Of Front End Accessory Drive 4.6L, 5.4L & 6.8L With A/C With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | N808920 | Accessory drive belt tensioner bolt (3 required) |
| 3 | 6B209 | Accessory drive belt tensioner |
| 4 | N808102 | Accessory drive belt idler pulley bolt |
| 5 | 19A216 | Accessory drive belt idler pulley |
NOTE:
4.6L without A/C shown, 5.4L and 6.8L similar.

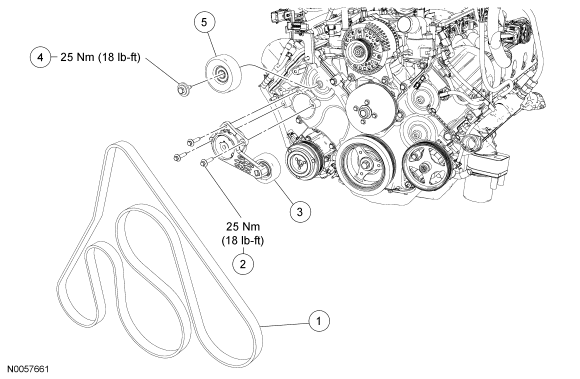

Fig 2: Exploded View Of Front End Accessory Drive 4.6L, 5.4L & 6.8L Without A/C With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | N808920 | Accessory drive belt tensioner bolt (3 required) |
| 3 | 6B209 | Accessory drive belt tensioner |
| 4 | N808102 | Accessory drive belt idler pulley bolt |
| 5 | 19A216 | Accessory drive belt idler pulley |
- For additional information, refer to the procedures.
