Positive Crankcase Ventilation (PCV) Valve - 6.8L
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

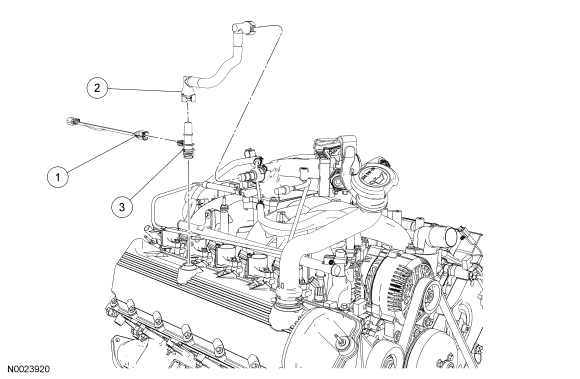

| Item | Part Number | Description |
|---|---|---|
| 1 | - | PCV valve electrical connector (part of 12B637) |
| 2 | 6C324 | PCV hose quick connect fitting |
| 3 | 6769 | Heated PCV valve |
- Remove the engine cover. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION article.
- Disconnect the PCV valve electrical connector.
- Disconnect the PCV valve tube quick-connect fitting and position the PCV tube aside.
- Rotate the PCV valve counterclockwise and remove the PCV valve.
- To install, reverse the removal procedure.
