Exhaust Gas Recirculation (EGR) Valve - 6.0L Diesel: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Injector Sleeve Brush Set | 303-DS110 (D94T-9000-D) or equivalent | |
| Remover, EGR Valve | 303-760 |
Material
| Item | Specification |
|---|---|
| SAE 15W-40 Super Duty Diesel Motor Oil XO-15W40-QSD (US); CXO-15W40-LSD12 (Canada); or equivalent |
WSS-M2C171-E |

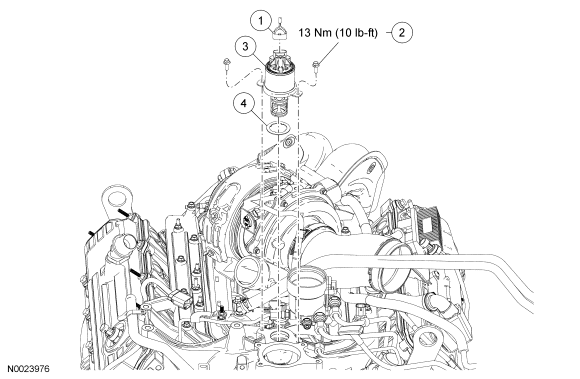

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications - 6.0 L Diesel
| Item | Part Number | Description |
|---|---|---|
| 1 | - | EGR valve electrical connector (part of 12B637) |
| 2 | W300002 | EGR valve bolt (2 required) |
| 3 | 9F452 | EGR valve |
| 4 | 9F455 | EGR valve gasket |
