Battery and Battery Tray - Exploded View

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

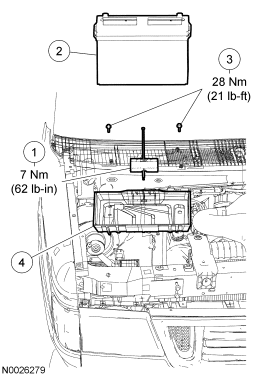

Fig 1: Exploded View Of Battery and Battery Tray With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	10B684	Battery hold-down bolt
2	10655	Battery
3	N606690	Battery tray bolts (2 required)
4	10748	Battery tray

For additional information, refer to the procedures.
