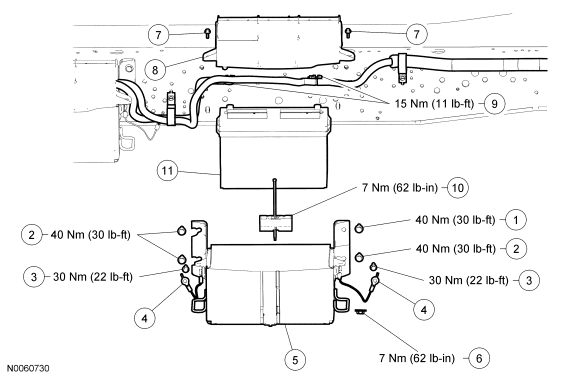

Battery and Battery Tray - Exploded View, Frame Mounted
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W500234 | Battery tray bolt (upper RH bolt) |
| 2 | W500234 | Battery tray bolts (3 required) |
| 3 | W500225 | Battery tray safety strap bolts (2 required) |
| 4 | - | Battery tray safety strap eyelets (2 required) |
| 5 | 10769 | Battery tray |
| 6 | N800854 | Battery tray cover nut (2 required) |
| 7 | N606677 | Battery tray cover bolts (2 required) |
| 8 | 10B679 | Battery tray cover |
| 9 | - | Battery terminal nuts (2 required) (part of 14B060) |
| 10 | 10B684 | Battery hold-down clamp and bolt |
| 11 | 10655 | Battery |
- For additional information, refer to the procedures.
