Battery Cables - Gasoline: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

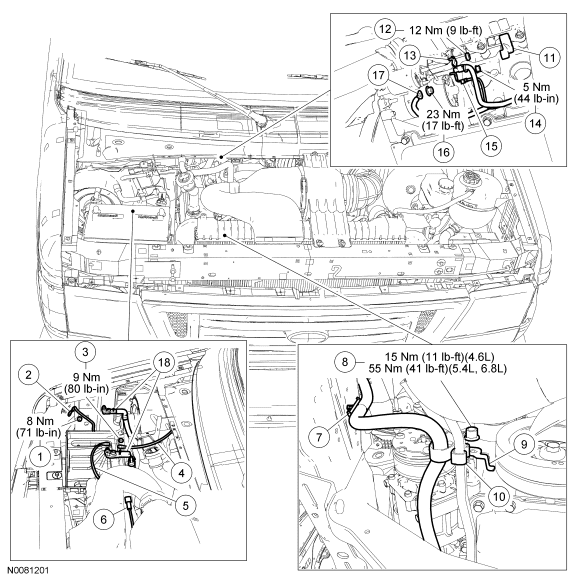

| Item | Part Number | Description |
|---|---|---|
| 1 | W705790 | Battery ground cable eyelet nut |
| 2 | - | Battery ground cable eyelet (part of 14B060) |
| 3 | W520101 | Battery junction box (BJB) terminal nut |
| 4 | - | Generator cable terminal |
| 5 | - | BJB terminal |
| 6 | - | Starter solenoid wire inline connector (part of 14B060) |
| 7 | - | Harness locator (2 required) (part of 14B060) |
| 8 | N621905 | Battery cable lower bracket nut (4.6L) |
| 8 | W520113 | Battery cable lower bracket nut (5.4L, 6.8L) |
| 9 | 14550 | Battery cable lower bracket |
| 10 | 7N291 | Transmission cooler line clip |
| 11 | 11N087 | Starter solenoid terminal cover |
| 12 | W706414 | Starter solenoid positive cable nut |
| 13 | - | Starter solenoid positive cable terminal |
| 14 | N805320 | Starter solenoid wire terminal nut |
| 15 | - | Starter solenoid wire terminal |
| 16 | N805024 | Battery ground cable terminal nut |
| 17 | - | Battery ground cable terminal (part of 14B060) |
| 18 | 14B060 | Battery cable assembly |
