Battery Cables - Frame Mounted, Gasoline: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

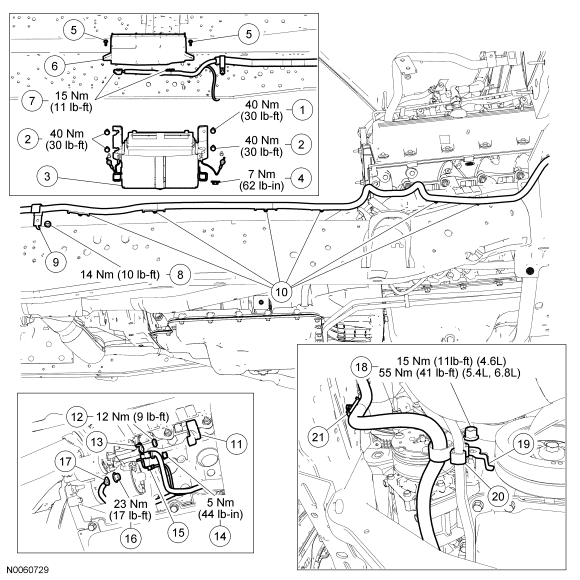

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W500234 |
Auxiliary battery tray bolt (upper RH bolt) |
| 2 |
W500234 |
Auxiliary battery tray bolts (3 required) |
| 3 |
10759 |
Auxiliary battery tray |
| 4 |
N800854 |
Auxiliary battery tray cover nut (2 required) |
| 5 |
N606677 |
Auxiliary battery tray cover bolts |
| 6 |
10B679 |
Auxiliary battery tray cover |
| 7 |
- |
Frame-mounted battery terminal nuts (2 required) (part of 14B060) |
| 8 |
N802777 |
Auxiliary battery harness-to-frame retainer bolt |
| 9 |
- |
Auxiliary battery harness-to-frame retainer (part of 14B060) |
| 10 |
- |
Harness locators (8 required) (part of 14B060) |
| 11 |
11N087 |
Starter solenoid terminal cover |
| 12 |
W706414 |
Starter solenoid positive cable terminal nut |
| 13 |
- |
Starter solenoid positive cable terminal |
| 14 |
N805320 |
Starter solenoid wire terminal nut |
| 15 |
- |
Starter solenoid wire terminal |
| 16 |
N805024 |
Battery ground cable terminal nut |
| 17 |
- |
Battery ground cable terminal (part of 14B060) |
| 18 |
N621905 |
Battery cable lower bracket nut (4.6L) |
| 18 |
W520113 |
Battery cable lower bracket nut (5.4L, 6.8L) |
| 19 |
14550 |
Battery cable lower bracket |
| 20 |
7N291 |
Transmission cooler line clip |
| 21 |
- |
Harness locator (part of 14B060) |

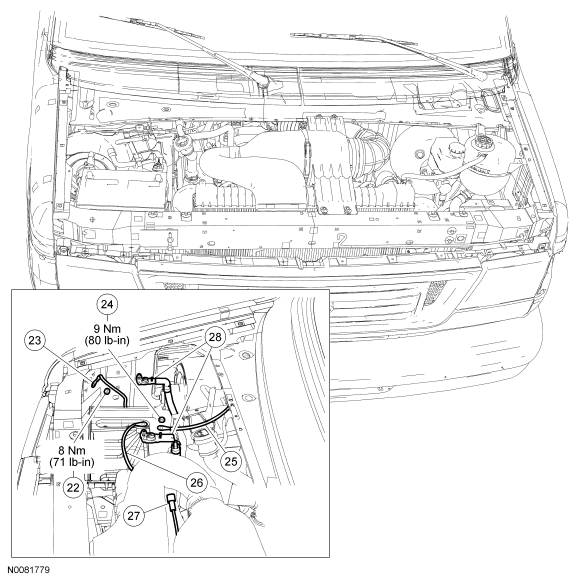

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 22 |
W705790 |
Battery ground cable eyelet nut |
| 23 |
- |
Battery ground cable eyelet (part of 14B060) |
| 24 |
W520101 |
Battery junction box (BJB) cable terminal nut |
| 25 |
- |
Generator cable terminal (part of 14305) |
| 26 |
- |
BJB terminal |
| 27 |
- |
Starter solenoid wire inline connector (part of 14B060) |
| 28 |
14B060 |
Battery cable assembly |
