| Item | Part Number | Description |
|---|---|---|
| 1 | W500234 | Frame-mounted battery tray bolt (upper RH bolt) |
| 2 | W500234 | Frame-mounted battery tray bolts (3 required) |
| 3 | 10759 | Battery tray |
| 4 | N800854 | Battery tray cover nut (2 required) |
| 5 | N606677 | Battery tray cover bolts (2 required) |
| 6 | 10B679 | Battery tray cover |
| 7 | - | Battery terminals (2 required) (part of 14B060) |
| 8 | N802777 | Battery harness-to-frame retainer bolt |
| 9 | - | Battery harness-to-frame retainer (part of 14B060) |
| 10 | W500234 | Battery tray bolt (upper RH bolt) |
| 11 | W500234 | Battery tray bolts (3 required) |
| 12 | N800854 | Battery tray nut (2 required) |
| 13 | 10759 | Battery tray |
| 14 | - | Battery tray cover bolts (2 required) |
| 15 | 10B679 | Battery tray cover |
| 16 | - | Battery terminal nuts (2 required) (part of 14B060) |
| 17 | N802777 | Battery harness-to-frame retainer bolt |
| 18 | - | Battery harness-to-frame retainer (part of 14B060) |
| 19 | 11N087 | Starter solenoid terminal cover |
| 20 | W706414 | Starter solenoid positive cable terminal nut |
| 21 | - | Starter solenoid positive cable terminal |
| 22 | N805320 | Starter solenoid wire terminal nut |
| 23 | - | Starter solenoid wire terminal |
| 24 | - | Starter cable retainer nut |
| 25 | - | Starter cable retainer |

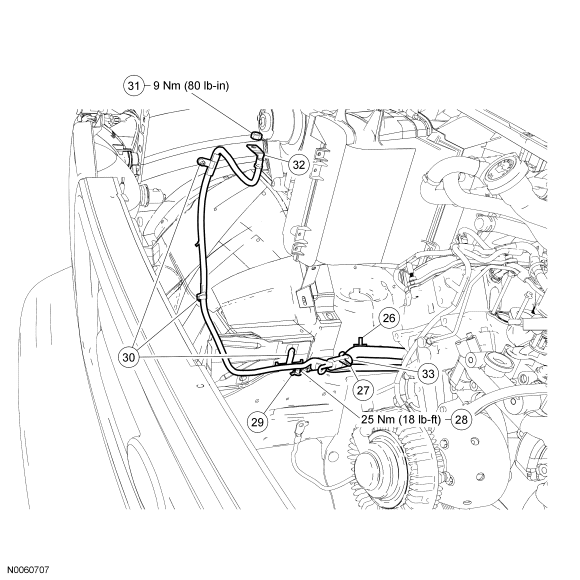

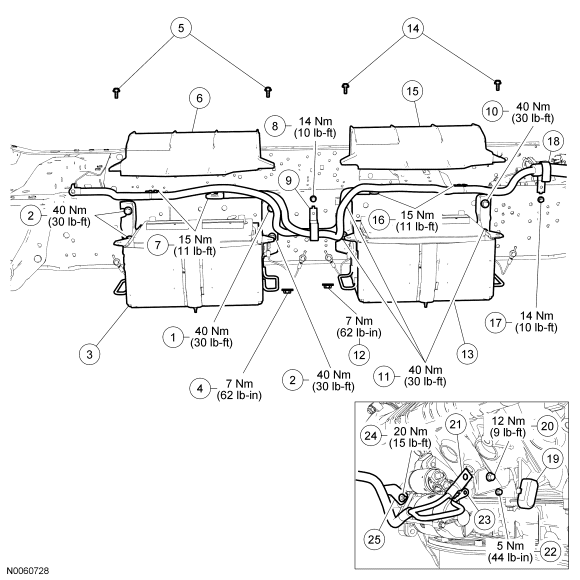

Fig 2: Exploded View Of Frame Mounted Battery Cables - Underhood Connections - Diesel With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 26 | - | Harness locator (part of 14B060) |
| 27 | - | Harness locator (part of 14B060) |
| 28 | N802777 | Battery ground cable terminal bolt |
| 29 | - | Battery ground cable terminal (part of 14B060) |
| 30 | - | Harness locators (3 required) (part of 14B060) |
| 31 | N620482 | Battery junction box (BJB) terminal nut |
| 32 | - | BJB terminal |
| 33 | 14B060 | Battery cable assembly |
