Air Bag and Safety Belt Pretensioner Supplemental Restraint System (SRS)
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
The air bag supplemental restraint system (SRS) is designed to provide increased collision protection for front seat occupants in addition to that provided by the 3-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantages of the SRS.

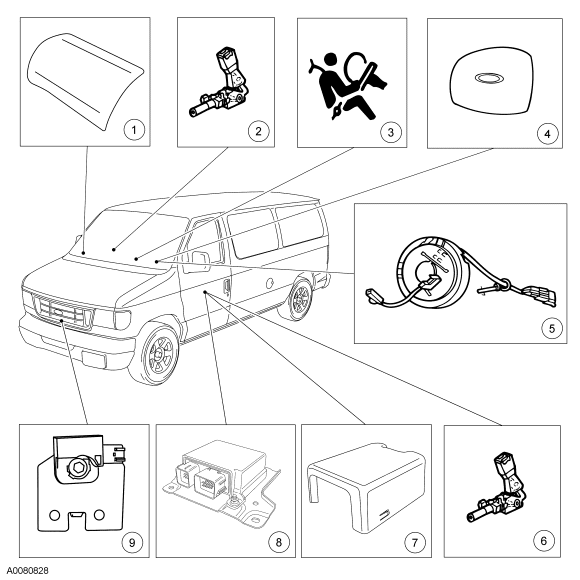

| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module |
| 2 | 16202 | Passenger safety belt buckle and pretensioner |
| 3 | - | Air bag warning indicator (located in the instrument cluster [IC] module) |
| 4 | 043B13 | Driver air bag module |
| 5 | 14A664 | Clockspring |
| 6 | 16203 | Driver safety belt buckle and pretensioner |
| 7 | 14B568 | Restraints control module (RCM) protective cover |
| 8 | 14B321 | RCM |
| 9 | 14B006 | Front impact severity sensor |
