Seat Latch Striker - Rear, Bench: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH shown, LH similar.

NOTE: Fifteen-passenger vehicle shown, all others except 7-passenger similar.

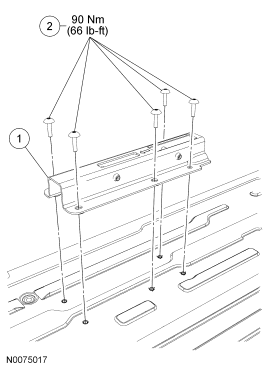

Fig 1: Exploded View Of Rear Bench Seat Latch Striker With Torque Specification - Second Row

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62440	Seat latch striker
2	W713255	Seat latch striker bolts (4 required)

NOTE: RH shown, LH similar.

NOTE: Seven-passenger vehicle shown, all others similar.

Fig 2: Exploded View Of Rear Bench Seat Latch Striker With Torque Specification - Third Row

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62440	Seat latch striker
2	W713255	Seat latch striker bolts (5 required)

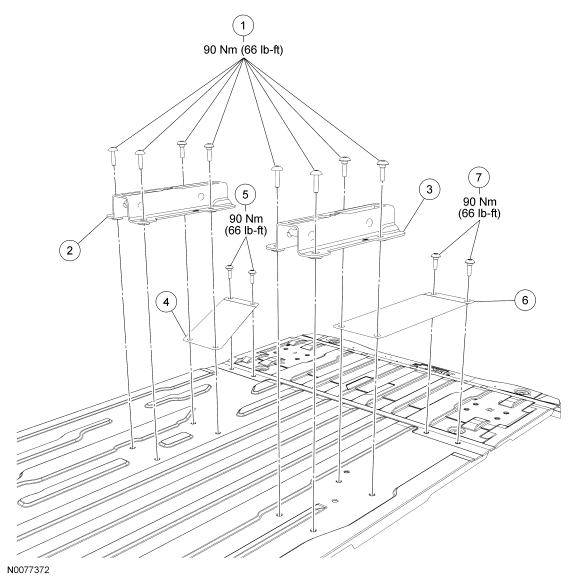

Fig 3: Exploded View Of Rear Bench Seat Latch Striker With Torque Specifications - Fourth Row, 11-Passenger

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713255	Seat latch striker bolts (4 required)
2	62440	Seat latch striker, RH
3	62440	Seat latch striker, LH
4	112B78	RH reinforcement plate
5	W713255	RH reinforcement plate bolts (2 required)
6	112B79	LH reinforcement plate
7	W713255	LH reinforcement plate bolts (2 required)

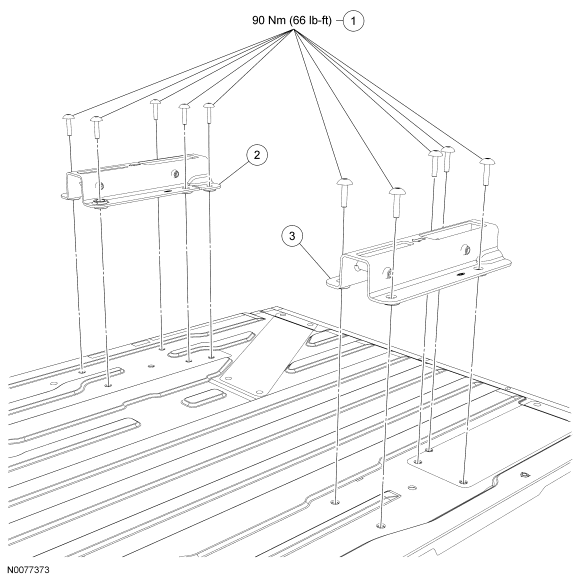

Fig 4: Exploded View Of Rear Bench Seat Latch Striker With Torque Specification - Fourth Row, 12-Passenger

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W713255	Seat latch striker bolts (5 required)
2	62440	Seat latch striker, RH
3	62440	Seat latch striker, LH

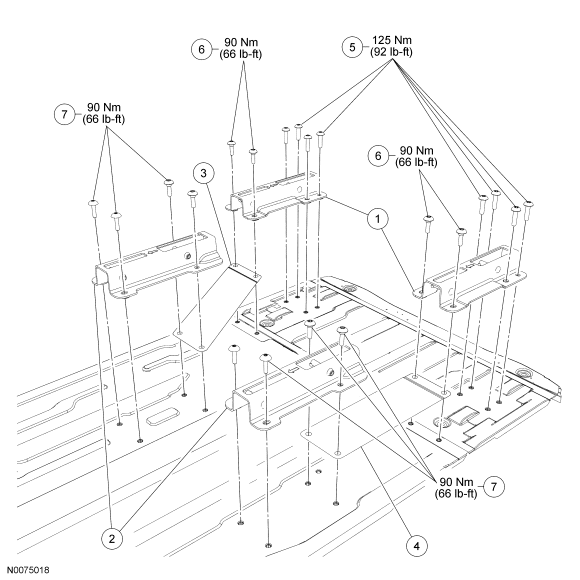

Fig 5: Exploded View Of Rear Bench Seat Latch Striker With Torque Specifications - Fourth & Fifth Rows, 15-Passenger

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62440	Seat latch strikers, fifth row
2	62440	Seat latch strikers, fourth row
3	112B78	RH reinforcement plate
4	112B79	LH reinforcement plate
5	W713256	Rearward seat latch striker M14 bolts, fifth row (4 required)
6	W713255	Forward seat latch striker M12 bolts, fifth row (2 required)
7	W713255	Seat latch striker bolts (4 required)
