Seat Cushion - Rear, Bench, 3-Passenger: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

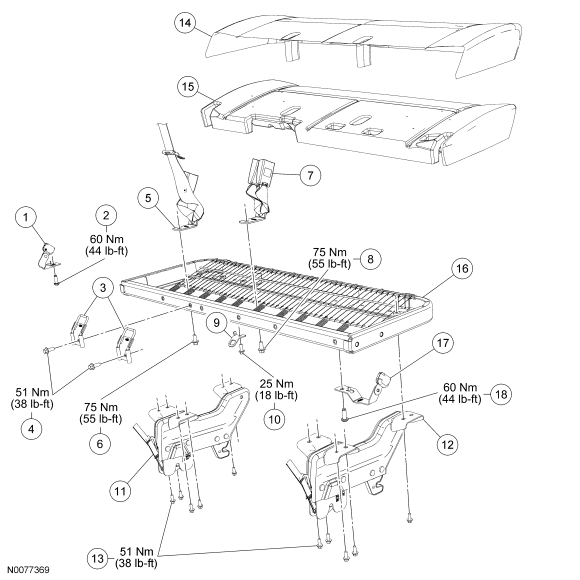

Seven-passenger vehicle third row bench seat shown, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 60045 | LH detachable safety belt anchor |
| 2 | - | LH detachable safety belt anchor bolt (part of 60045) |
| 3 | 601B28 | Lower anchors and tethers for children (LATCH) (2 required) |
| 4 | W505274 | LATCH bolts (2 required) |
| 5 | - | Center safety belt anchor (part of 611B64) |
| 6 | W505283 | Safety belt anchor bolt |
| 7 | 60044 | Safety belt buckle |
| 8 | W505283 | Safety belt buckle bolt |
| 9 | 613D20 | Child safety seat tether anchor |
| 10 | W505274 | Child safety seat tether anchor bolt |
| 11 | - | Seat riser, LH (part of 63160) |
| 12 | - | Seat riser, RH (part of 63160) |
| 13 | W505274 | Seat riser bolts (10 required) |
| 14 | 63804 | Cushion trim cover |
| 15 | 66800 | Cushion foam pad |
| 16 | 63160 | Cushion frame assembly |
| 17 | 60044 | RH detachable safety belt anchor |
| 18 | - | RH detachable safety belt anchor bolt (part of 60044) |
