Safety Belt Shoulder Height Adjuster: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

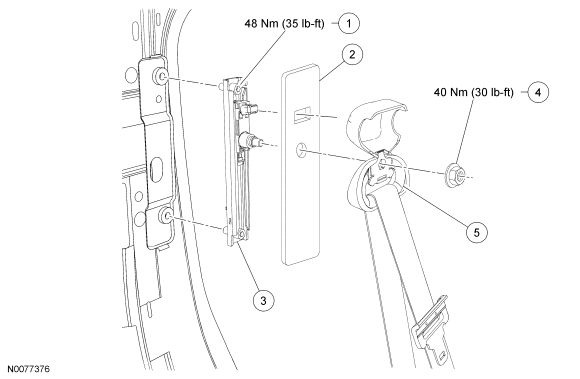

LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt shoulder height adjuster bolt (2 required) (part of 602B82) |
| 2 | 602B90 | Safety belt shoulder height adjuster cover |
| 3 | 602B82 | Safety belt shoulder height adjuster |
| 4 | W520113 | D-ring nut |
| 5 | - | D-ring (part of 611B08 RH/ 611B09 LH safety belt retractor) |
