Safety Belt Retractor - Third Row, Outboard: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

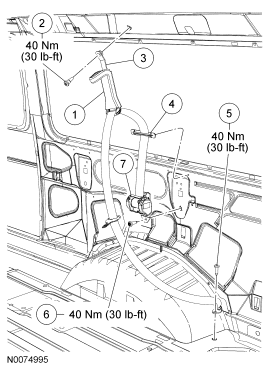

Fifteen-passenger vehicle shown, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 60262 | D-ring cover |
| 2 | - | D-ring bolt (part of 611B68) |
| 3 | - | Safety belt guide (part of 611B68) |
| 4 | 386273 | Safety belt anchor bolt |
| 5 | - | Safety belt retractor bolt (part of 611B68) |
| 6 | 611B68 | Safety belt retractor |
NOTE:

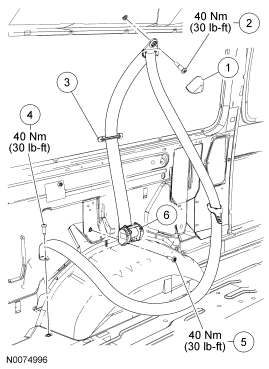

Fifteen-passenger vehicle shown, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Safety belt sling sleeve (part of 611B69) |
| 2 | - | Safety belt sling bolt (part of 611B69) |
| 3 | - | Safety belt sling (part of 611B69) |
| 4 | - | Safety belt guide (part of 611B69) |
| 5 | 386273 | Safety belt anchor bolt |
| 6 | - | Safety belt retractor bolt (part of 611B69) |
| 7 | 611B69 | Safety belt retractor |
