Safety Belt Retractor - Front: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

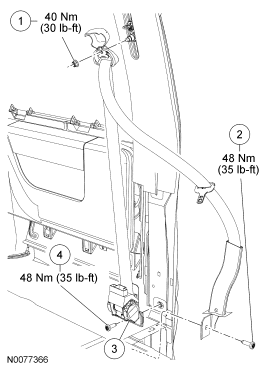

NOTE:
Fifteen-passenger vehicle shown, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520113 | D-ring nut |
| 2 | - | Safety belt anchor bolt (part of 611B09) |
| 3 | 611B09 | Safety belt retractor |
| 4 | - | Safety belt retractor bolt (part of 611B09) |
NOTE:
Fifteen-passenger vehicle shown, others similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W520113 | D-ring nut |
| 2 | - | Safety belt anchor bolt (part of 611B08) |
| 3 | 611B08 | Safety belt retractor |
| 4 | - | Safety belt retractor bolt (part of 611B08) |
