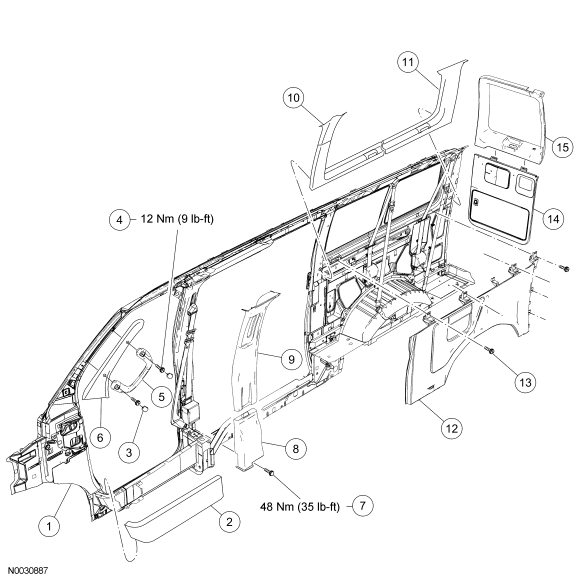

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 02349 | Cowl side trim panel (RH) |
| 2 | 13201 | Front door scuff plate (RH) |
| 3 | 31458 | Assist handle bolt cover (2 required) |
| 4 | W50001 | Assist handle bolt (2 required) |
| 5 | 31406 | Assist handle (RH) |
| 6 | 03598 | A-pillar trim panel |
| 7 | W704703 | B-pillar lower safety belt anchor bolt |
| 8 | 24356 | Lower B-pillar trim panel |
| 9 | 28155 | Upper B-pillar trim panel |
| 10 | 31004 | Upper front quarter trim panel (RH) |
| 11 | 31010 | Upper rear quarter trim panel (RH) |
| 12 | 31486 | Lower front quarter trim panel |
| 13 | 56912 | Lower front quarter trim panel bolts (6 required) |
| 14 | 45221 | Back door trim panel |
| 15 | 42325 | Back door window garnish molding |
- For additional information, refer to the procedures.
