Headliner - Rear: Notes

WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

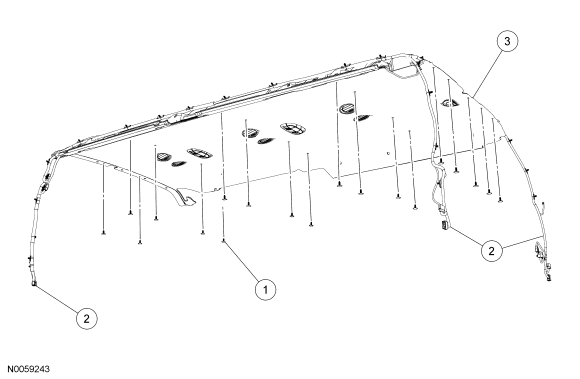

Fig 1: Exploded View Of Rear Headliner
GF0011247Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W709691 Pin-type retainer (19 required)
2 14405 Rear headliner wire harnesses
3 51942 Rear headliner
