Removal And Installation
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION article.

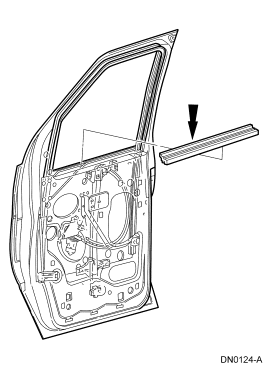

- Remove the front door inner belt line weatherstrip.
- Remove the rear glass channel bolt and lift the channel.
- To install, tighten to 12 Nm (9 lb-ft).
- Lower the window glass to gain access to the 2 glass bracket retaining rivets.
- Remove the center pins from the rivets, using a drift. Using a 1/4-inch diameter drill, drill out the remainder of the rivets.
- Lift up and rotate the front door window glass clockwise and remove.
- To install, reverse the removal procedure.
CAUTION:
Do not attempt to pry out the rivets, as damage to the front door window glass can result. Prior to removing the rivet center pins, it is recommended that a suitable block support be placed between the front door outer panel and the glass bracket to stabilize the glass during rivet removal.
