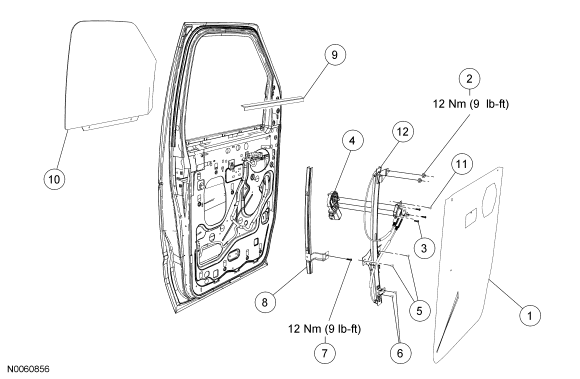

Glass, Frames and Mechanisms - Exploded View
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 237A05 LH/ 237A04 RH | Weathershield |
| 2 | N621907-S437 | Nut (2 required) |
| 3 | - | Screw (3 required) |
| 4 | 23394 | Window regulator motor |
| 5 | W525172 | Rivets (2 required) |
| 6 | W525172 | Rivets (2 required) |
| 7 | N800507-S439 | Rear glass channel bolt |
| 8 | 222A01 LH/ 222A00 RH | Rear glass channel |
| 9 | 21456 | Inner belt line weatherstrip |
| 10 | 21411/21410 | Front door window glass |
| 11 | W525172 | Rivet (3 required) |
| 12 | 23201 LH/ 23200 RH | Window regulator |
- For additional information, refer to the procedures.
